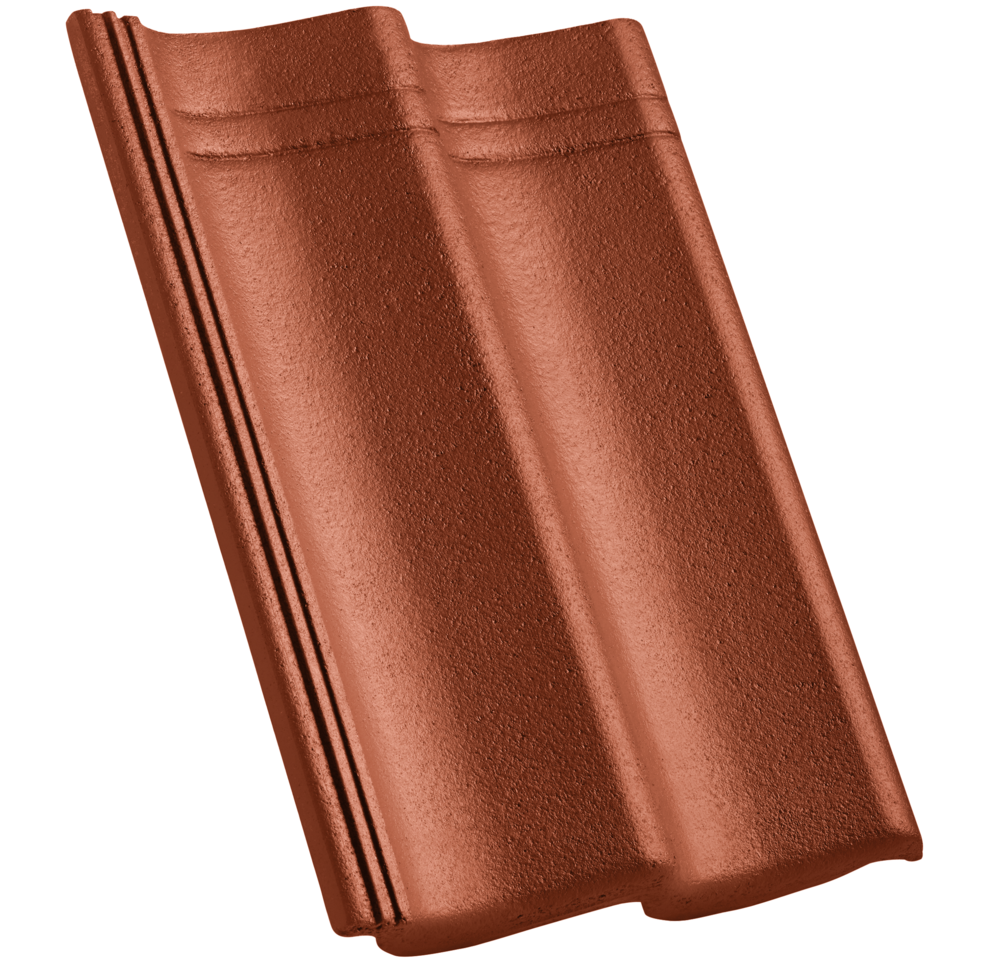

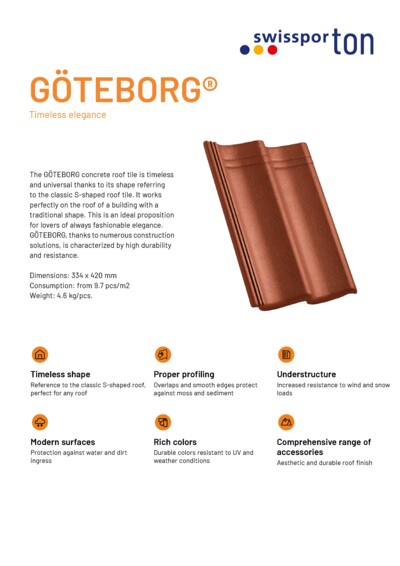

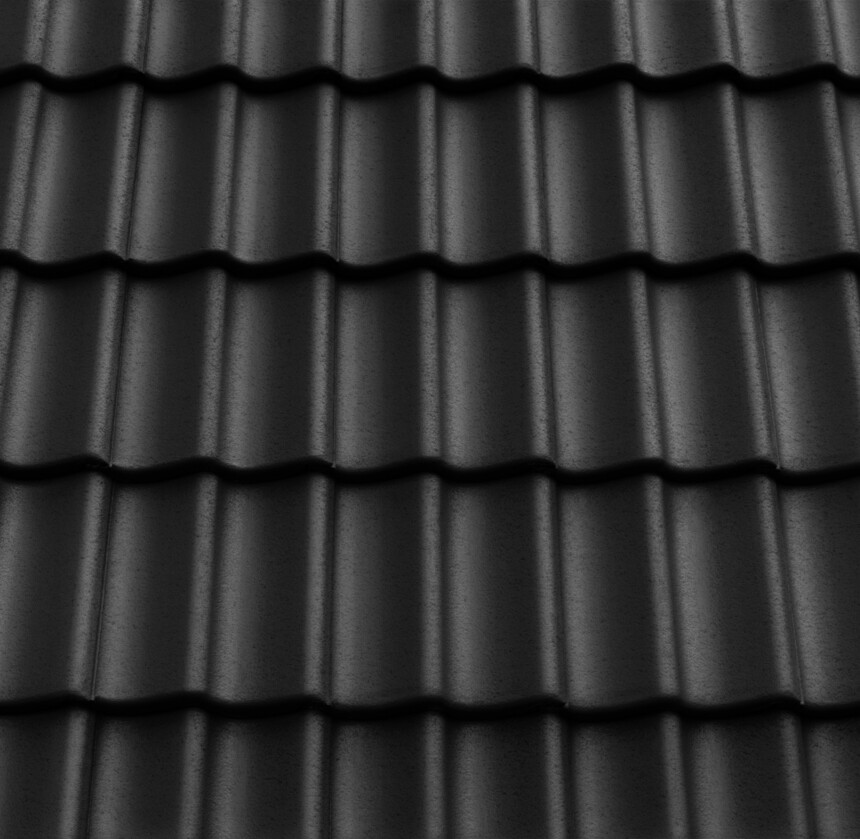

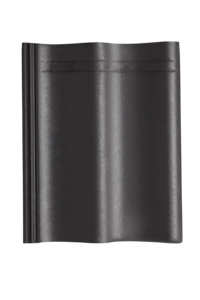

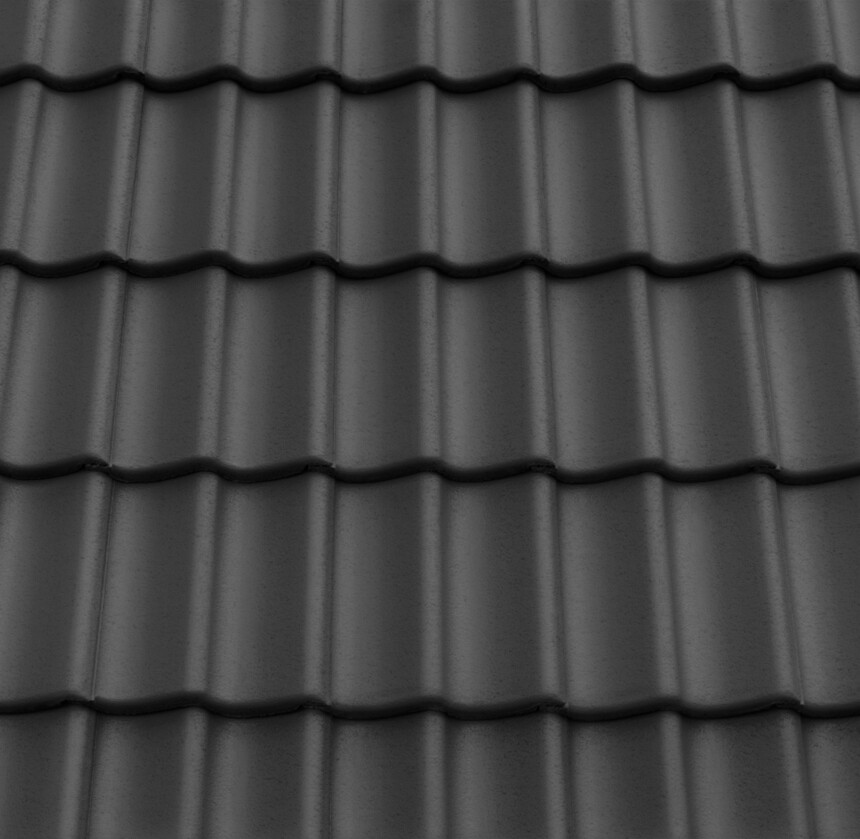

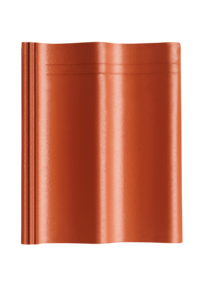

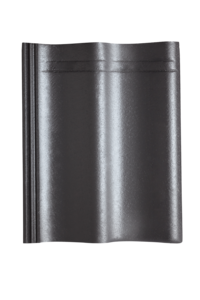

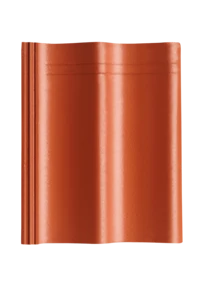

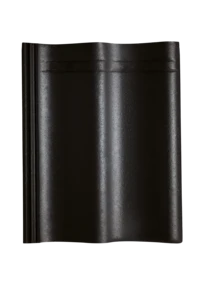

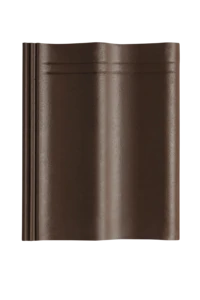

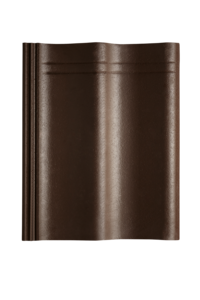

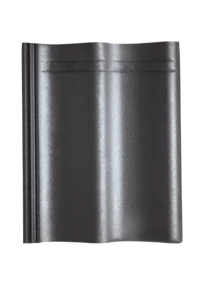

GÖTEBORG®
The GÖTEBORG concrete roof tile is timeless and universal thanks to its shape referring to the classic S-shaped roof tile. It works perfectly on the roof of a building with a traditional shape. This is an ideal proposition for lovers of always fashionable elegance. GÖTEBORG, thanks to numerous construction solutions, is characterized by high durability and resistance.
Dimensions: 334 x 420 mm
Consumption: from 9.7 pcs/m2
Weight: 4.6 kg/pcs.

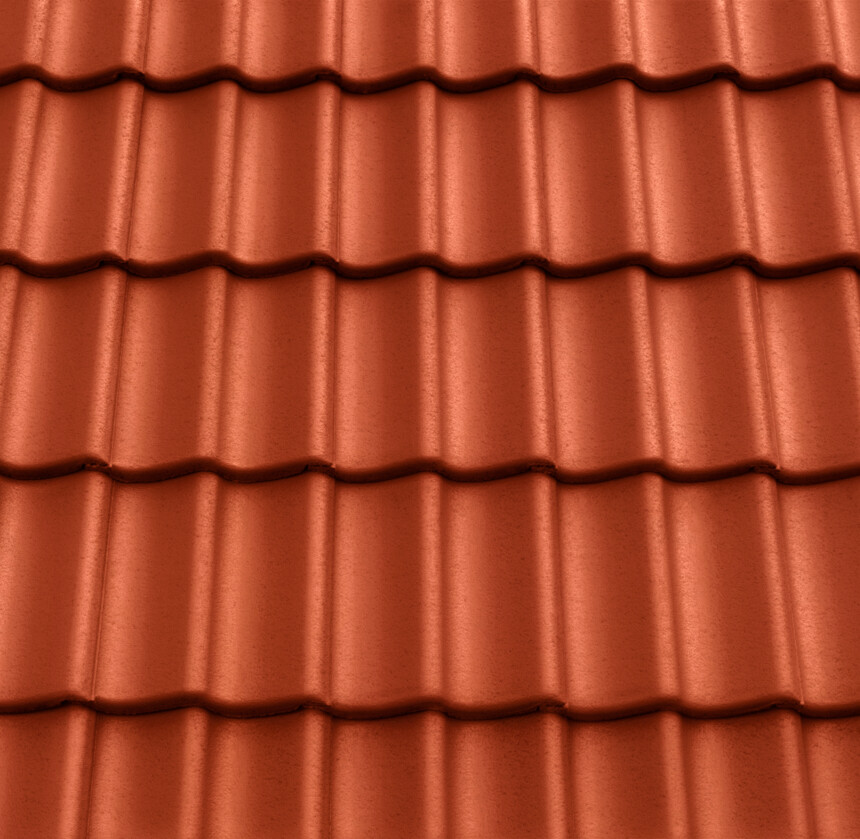

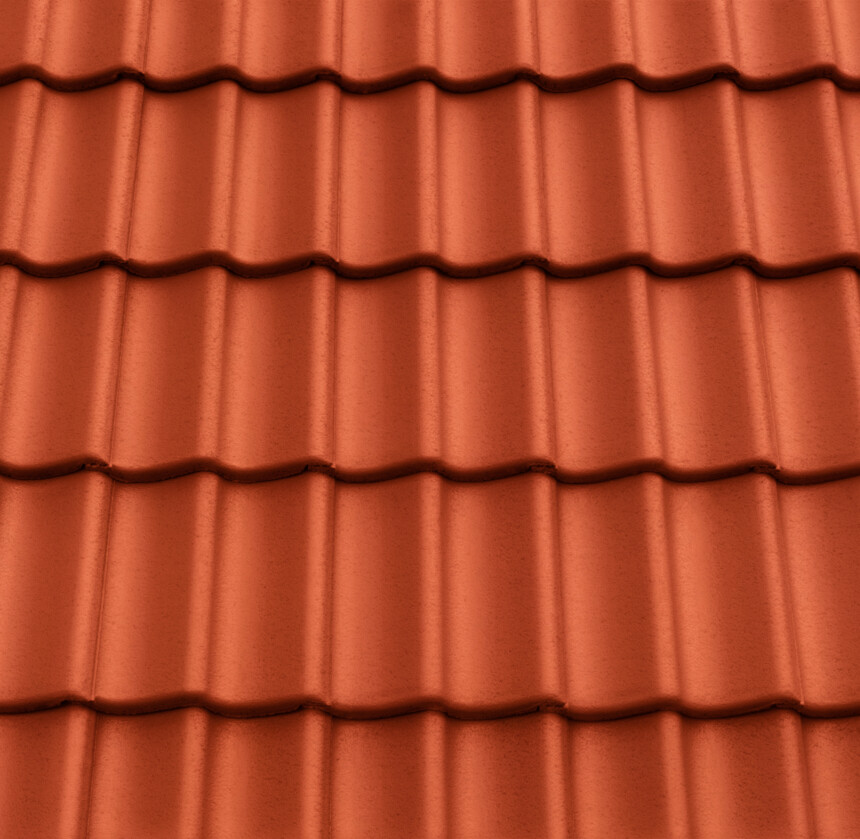

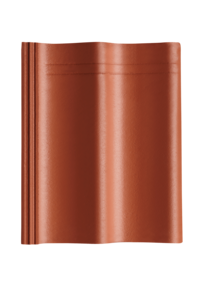

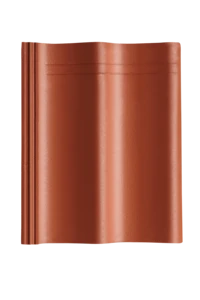

Red PLANAR
Check the most important advantages
Reference to the classic S-shaped roof, perfect for any roof
The roof tile is an ideal choice for lovers of always fashionable elegance.
Overlaps and smooth edges protect against moss and sediment
The contoured shape protects the roof from moss growth and sediment formation.
Increased resistance to wind and snow loads
The solid ribbed bottom increases the resistance of the roof surface to loads.
Protection against water and dirt ingress
The coatings limit water penetration into the tile and make it difficult for dirt to settle.

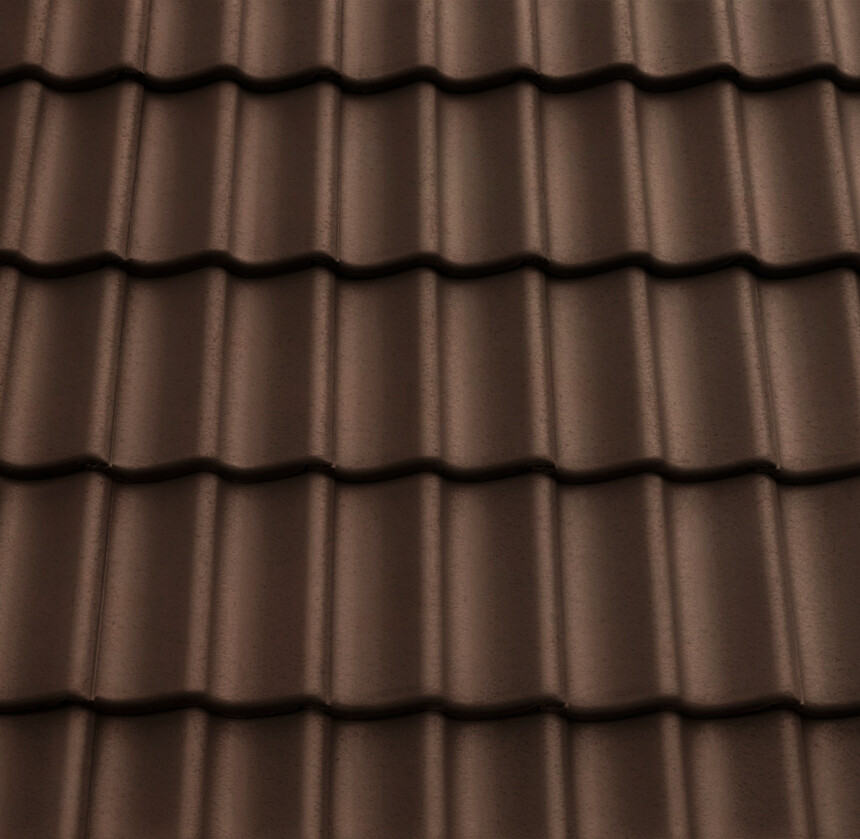

Durable colors resistant to UV and weather conditions
It is available in a wide range of colors with increased resistance to UV and weather conditions.
Aesthetic and durable roof finish
The range of system accessories guarantees an aesthetic finish in all details.
Technical data for GÖTEBORG®
-
-
334 × 420 mm
-
-
-
300 mm
-
-
-
300 mm
-
-
-
300 mm
-
-
-
310 mm
-
-
-
Requirement for ridge tiles (approx.) / Angle
DN
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
LAF
35
33
32
30
29
28
26
25
25
25
2.5 pcs/m
FLA
113
107
102
98
93
89
85
82
79
76
-
Requirement for ridge tiles (approx.) / Angle
DN
15°
20°
25°
30°
35°
40°
45°
50°
55°
60°
Ridge tile universal
LAF
35
33
32
30
29
28
26
25
25
25
2.5 pcs/m
FLA
122
117
112
108
104
101
98
92
89
86
-
Choose the best accessories

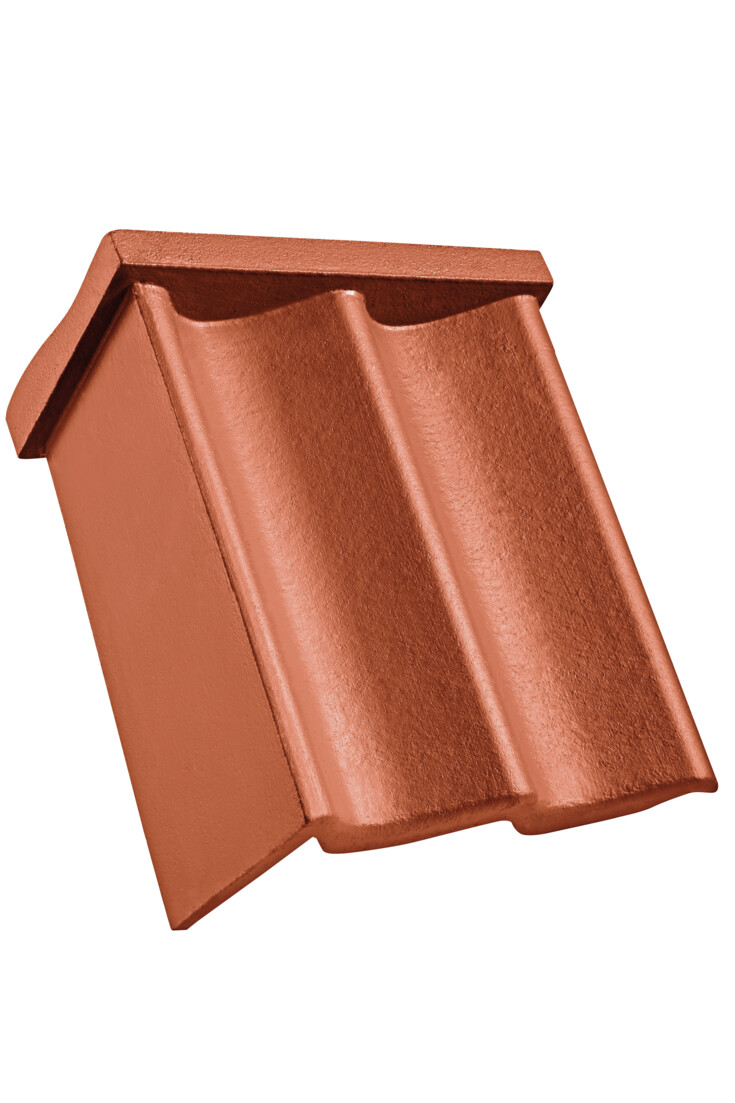

GÖTEBORG Shed verge tile Right

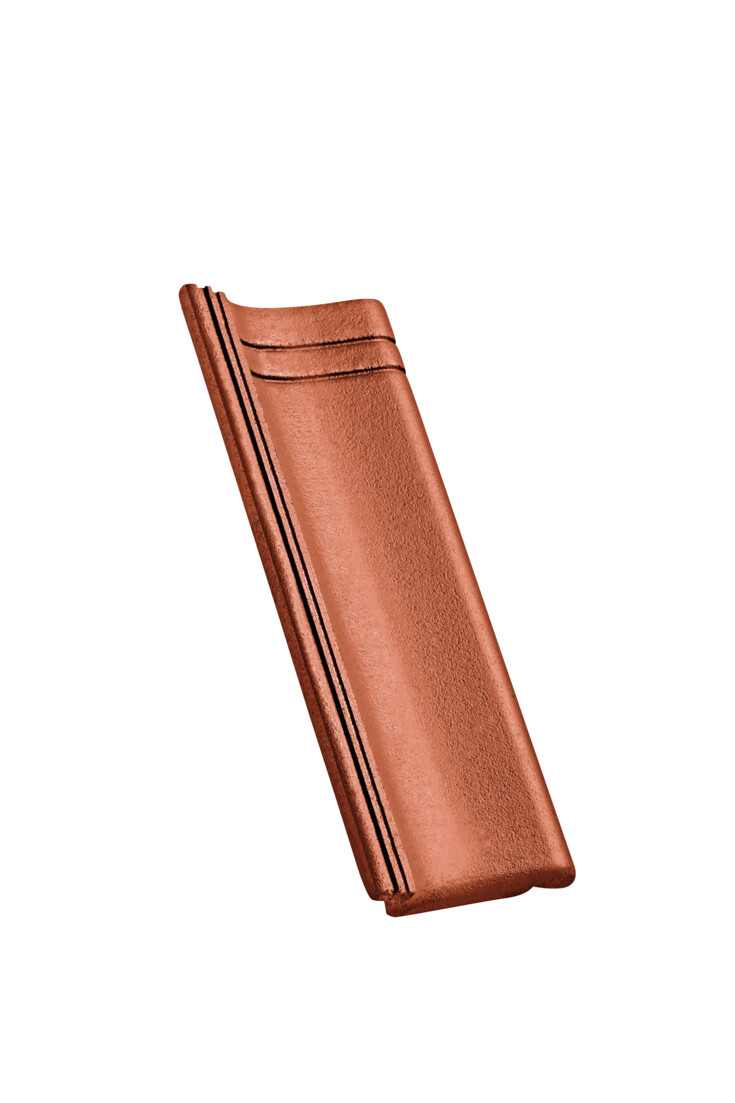

GÖTEBORG Half-width tile

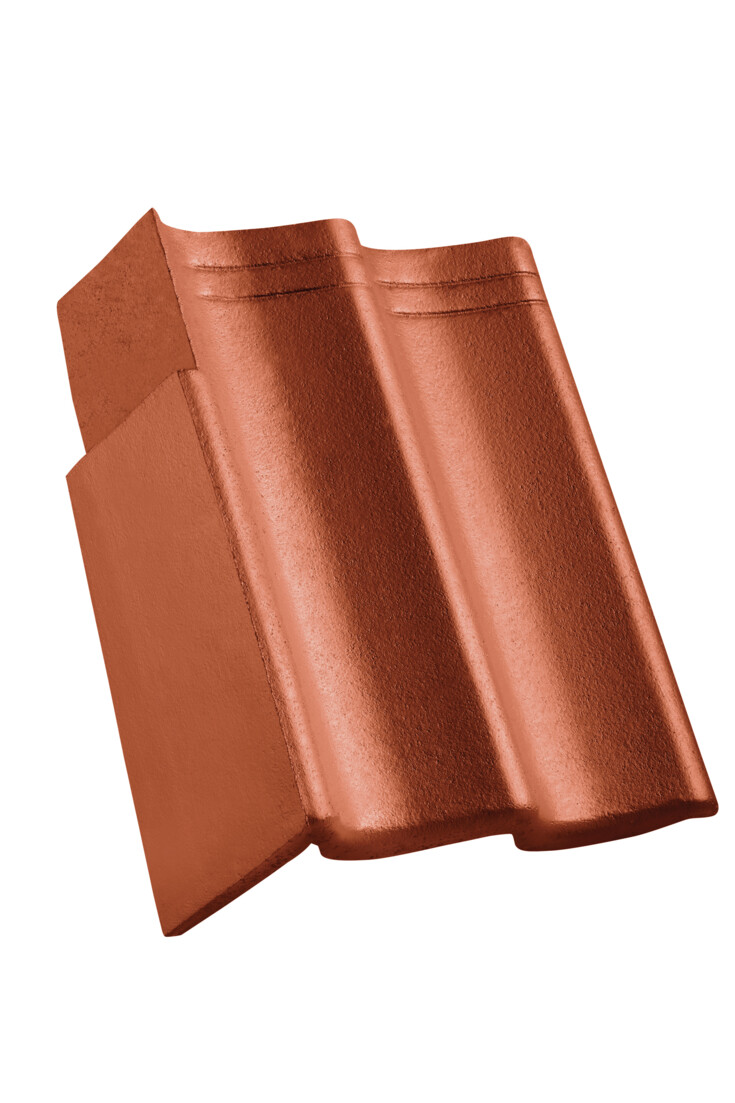

GÖTEBORG Verge tile notch 120 mm, batten spacing 310-334 mm Right
GÖTEBORG Verge tile notch 90 mm, batten spacing 335-345 mm Left
Downloads
-
-
tech draw GOTEBORG verge tile 90 left pack.zip
-
tech draw GOTEBORG basic tile pack.zip
-

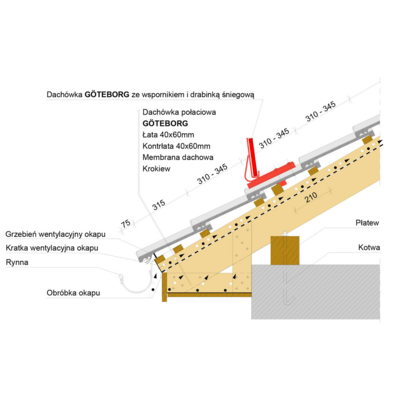

tech draw GOTEBORG base fitting with snowu guard support pack.zip
-
tech draw GOTEBORG half width tile pack.zip
-
tech draw GOTEBORG log bracket pack.zip
-
tech draw GOTEBORG shed half tile decorated pack.zip
-

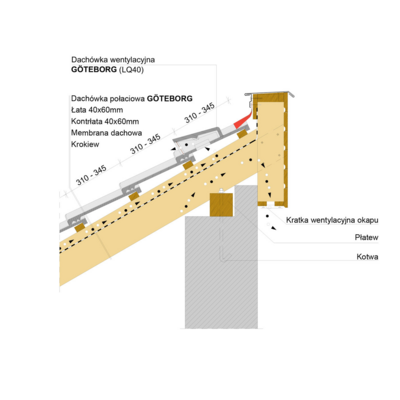

tech draw GOTEBORG shed roof tile pack.zip
-
tech draw GOTEBORG shed roof verge tile left pack.zip
-
tech draw GOTEBORG shed roof verge tile right pack.zip
-
tech draw GOTEBORG single tread aluminium pack.zip
-
tech draw GOTEBORG ventilating tile pack.zip
-
tech draw GOTEBORG verge tile 90 right pack.zip
-
tech draw GOTEBORG verge tile 120 right pack.zip
-
tech draw GOTEBORG verge tile 120 left pack.zip
-
